Railex 200-10 Switches: Removable, Telescoping, Swivel

Railex offers a variety of standard switches. All switches are made in house. Custom lengths and sizes available.

RBS – REMOVABLE BAR SWITCH

  • Standard to fit 32” wide opening.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

RBTS – REMOVABLE BAR TELESCOPING SWITCH

  • Standard Telescopic to fit 32” to 44” wide openings.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

RBTSS – REMOVABLE BAR TELESCOPING SWIVEL SWITCH

  • Standard Telescopic Swivel to fit 32” to 44” wide openings.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH VERTICAL

  • Standard Telescopic Swivel Vertical to fit 32” to 44” wide openings.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORIZONTAL VERTICAL

  • Standard Telescopic Swivel to fit 32” to 44” wide openings.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORZ. VERT. TO HORZ. KT TAPERED

  • Tapered Telescopic Swivel Horizontal Vertical to Vertical to fit 32” to 44” wide openings from GT size to KT size.
  • Custom lengths available.
  • KT Size.
  • Knuckles to insert into your existing rails are included.

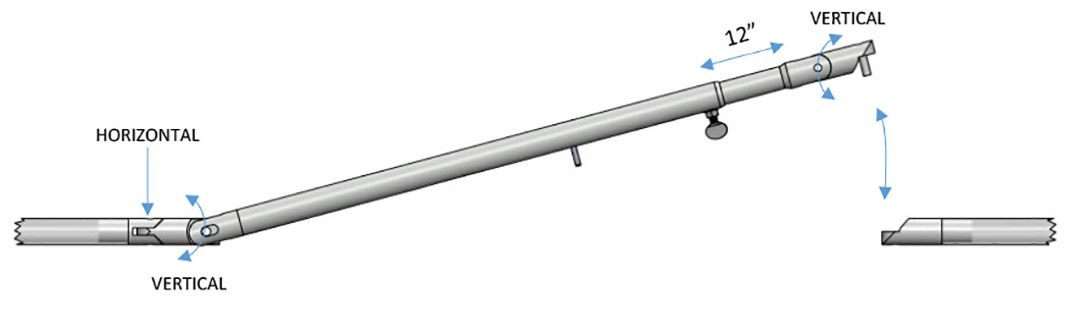

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORIZONTAL VERTICAL TO HORIZONTAL

  • Standard Telescopic Swivel Horizontal Vertical to Horizontal to fit 32” to 44” wide openings.
  • Custom lengths available.
  • Available in GT and KT.
  • Knuckles to insert into your existing rails are included.

REFERENCE – HOW TO SPECIFY YOUR SWITCH

Ordering information:

Specify,

  • Type of switch; RBS, RBTS, RBTSS, HKTSS.
  • Length (L).
  • Each end KT or GT.
  • Each end whether it’s fixed, horizontal, vertical or both.
  • Max switch is up to 8 FT long.
  • Telescopic switch extendable length is within 12” increments.
