Railex 200-10 Switches: Removable, Telescoping, Swivel

Railex offers a variety of standard switches. All switches are made in house. Custom lengths and sizes available.

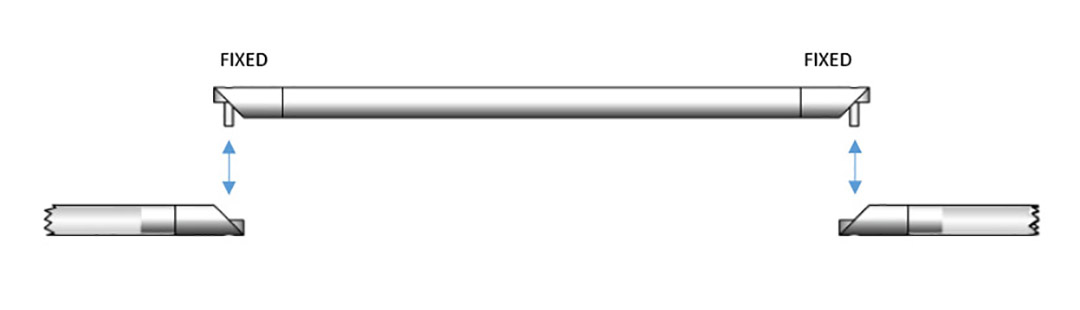

RBS – REMOVABLE BAR SWITCH

Standard to fit 32” wide opening.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

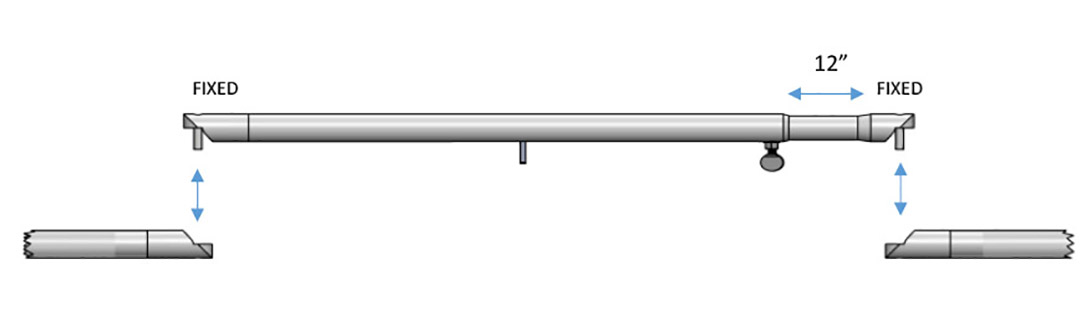

RBTS – REMOVABLE BAR TELESCOPING SWITCH

Standard Telescopic to fit 32” to 44” wide openings.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

RBTSS – REMOVABLE BAR TELESCOPING SWIVEL SWITCH

Standard Telescopic Swivel to fit 32” to 44” wide openings.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

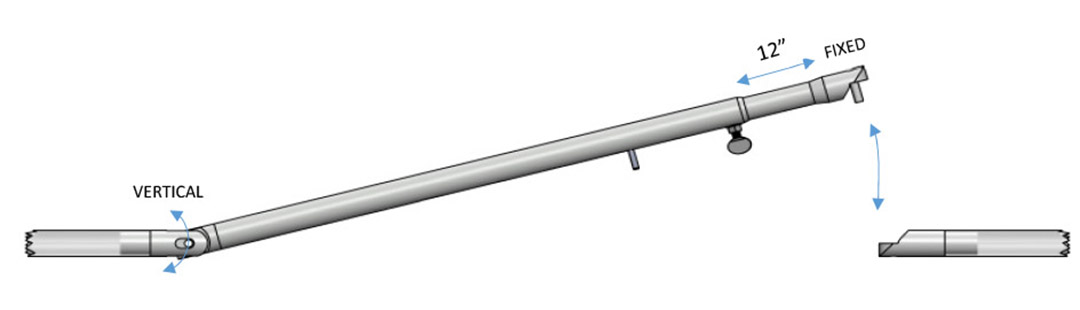

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH VERTICAL

Standard Telescopic Swivel Vertical to fit 32” to 44” wide openings.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

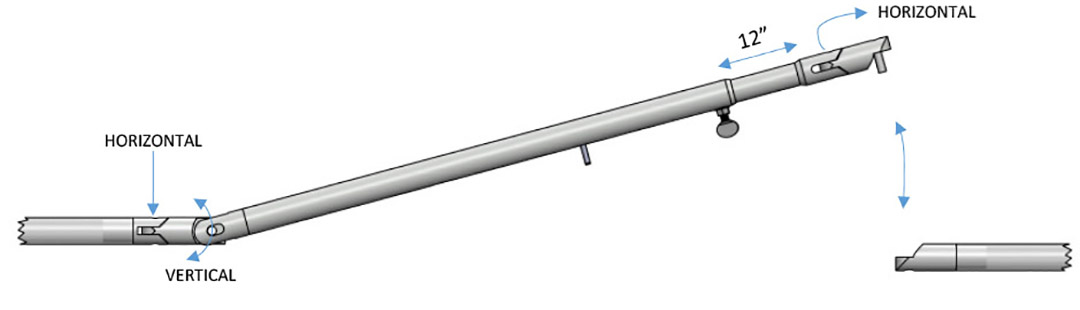

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORIZONTAL VERTICAL

Standard Telescopic Swivel to fit 32” to 44” wide openings.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

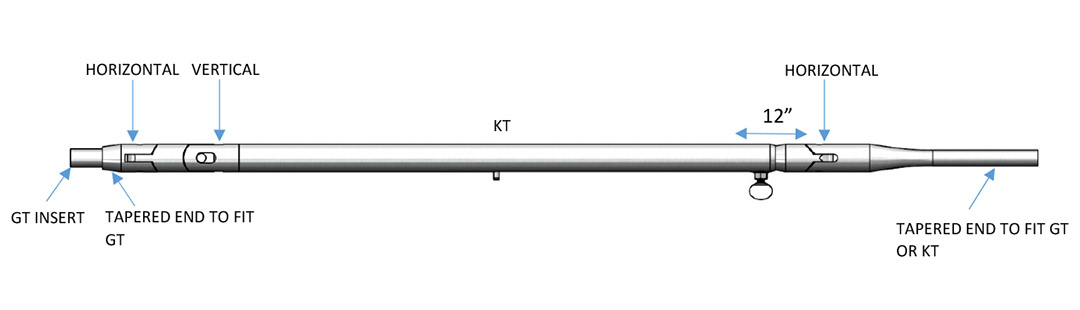

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORZ. VERT. TO HORZ. KT TAPERED

Tapered Telescopic Swivel Horizontal Vertical to Vertical to fit 32” to 44” wide openings from GT size to KT size.
Custom lengths available.
KT Size.
Knuckles to insert into your existing rails are included.

HKTSS – HINGE KNIFE TELESCOPING SWIVEL SWITCH HORIZONTAL VERTICAL TO HORIZONTAL

Standard Telescopic Swivel Horizontal Vertical to Horizontal to fit 32” to 44” wide openings.
Custom lengths available.
Available in GT and KT.
Knuckles to insert into your existing rails are included.

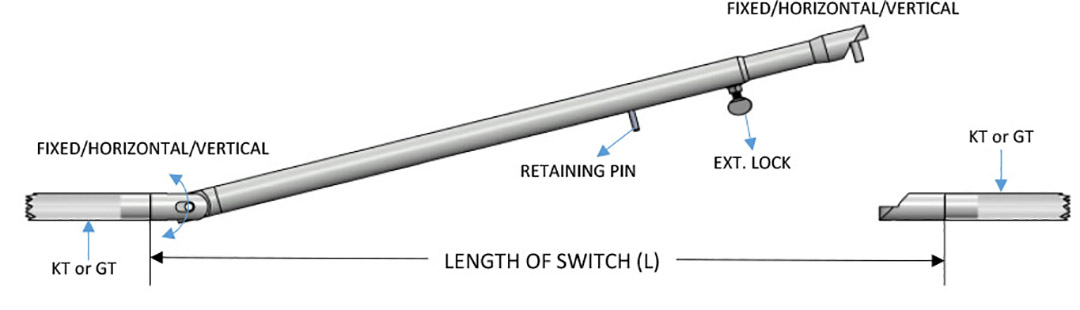

REFERENCE – HOW TO SPECIFY YOUR SWITCH

Ordering information:

Specify,

Type of switch; RBS, RBTS, RBTSS, HKTSS.
Length (L).
Each end KT or GT.
Each end whether it’s fixed, horizontal, vertical or both.
Max switch is up to 8 FT long.
Telescopic switch extendable length is within 12” increments.
