Railex System 200 Slick Rail
Static storage for garments on hangers (GOH) and hanging goods.
A Continuous Monorail and Storage System
The Railex System 200 is a continuous monorail and storage system designed for moving, storing and sorting wearing apparel and Garments on Hangers (GOH). The System 200 is suitable for many other material handling applications where the requirements are for a low-cost rail system with capacities of 50 lb/ft and trolley loads to 250 lbs.
High-density storage that can utilize the full ceiling height and cubic space of your building.
Can be built ground- or ceiling-supported.
Quiet, clean, lubrication-free operation.
Easy installation. Ready to suspend.
Heavy duty and high strength. Fabricated from High Strength Zinc Plated steel.
Modular design can be re-configured, moved or added to as needed.
Railex System 200 Slick Rail Trolleys
Railex 200-10 Switches: Removable, Telescoping, Swivel
Railex System 200 for Hanging Clothes in Pallet Racking
Railex System 200 Knuckles Only for Slick Rail
Railex System 200 Slick Rail Typical Stock Rack

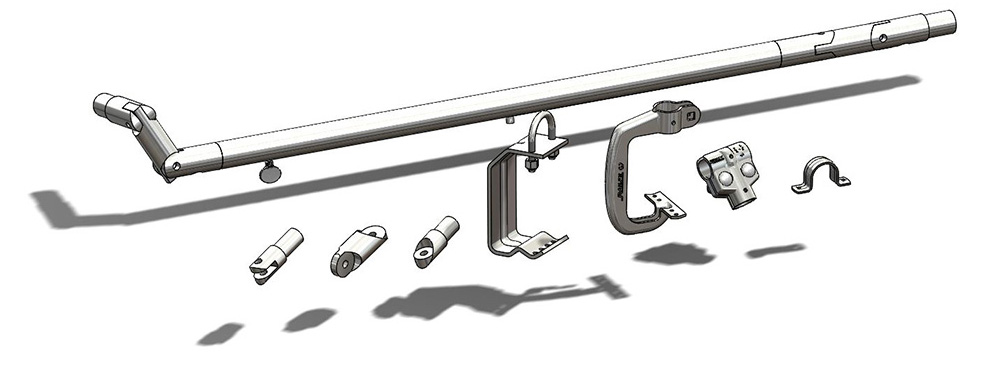

Railex System 200 Parts and Detail Views
Download System Drawings
Railex System 200 and 211 Typical Garment Clothing Storage Conveyor Cut Sheet
Railex System 200 and 722 Garment Storage Solution 17042
Railex System 200 Garment Distribution Center Typical 96000
Railex System 200 GOH Slick Rail Stock Racks 3 Tier 18092
Railex System 200 GOH Slick Rail Storage and Trolley 2 Level X-Section 96001
Railex System 200 GOH Slick Rail Typical 1 Tier 96002
Railex System 200 GOH Slick Rail Typical Installation 3 Tier 96006
Railex System 200 GOH Trolley and Storage System 1.0 96007
Railex System 200 GOH Trolley Sort Layout A 96014

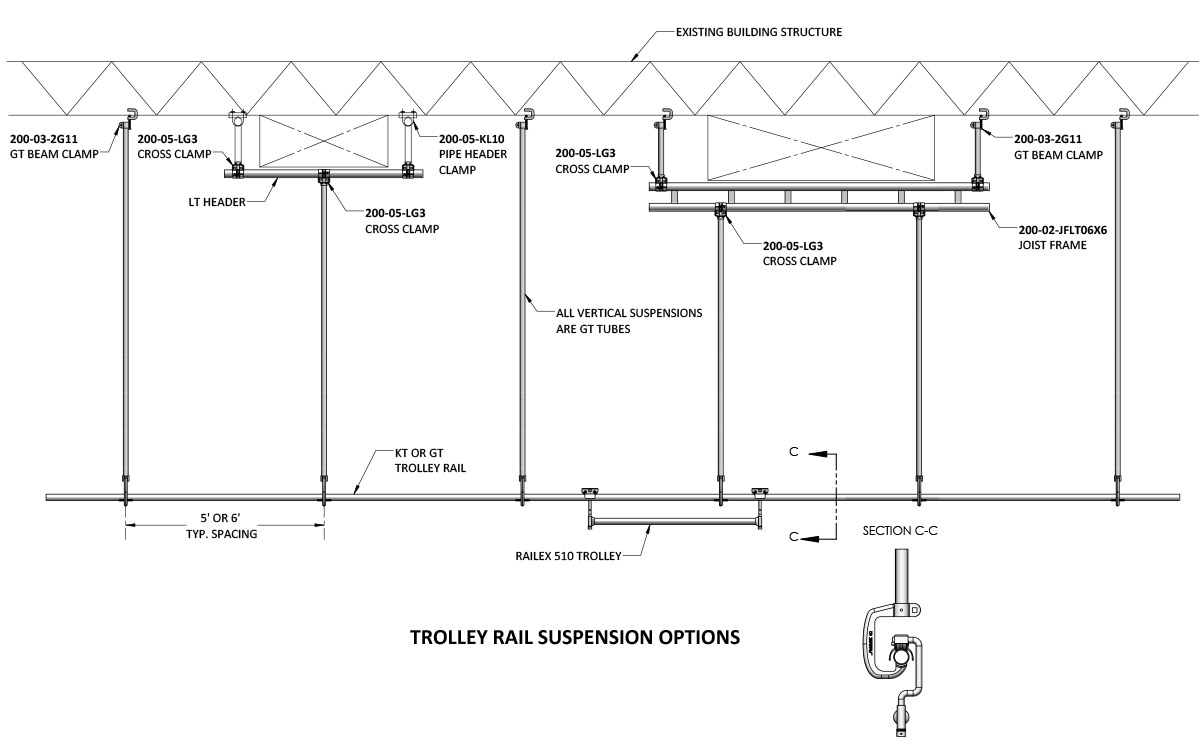

Railex System 200 Overhead Garment on Trolley Rail Ceiling Support 96004
Railex System 200 Overhead Garment on Trolley Storage System Typical 96003
Railex System 200 Slick Rail for Garment Trolley Typical Switch Installation 96005
Railex System 200 Typical Clothing Distribution Center Layout 1 96008
Railex System 200 Typical Clothing Distribution Center Layout 2 (Multi-level) 96009
Railex System 200 Typical Clothing Distribution Center Layout 3 (Multi-level) 96010
Railex makes many solutions for hanging Garments on Hangers in Pick Modules and pallet racks. The design shown offers higher density than any other method because it maximizes the use of your vertical space. The safety catch system can be manufactured to fit into any size pick module well. This system is so low profile that your racking can still be used for shelving when you don’t have need for the GOH space. This keeps your facility versatile.
Railex System 200 Trolley Rail Loaded with 900 Series Trolleys and GOH
Railex System 200 Slick Rail Storage racking for Garments on hangers (GOH)
1, 2, and 3 Tier free standing storage systems
- Heavy duty and high strength
- High density storage that can utilize the full ceiling height and cubic space that your building has.
- Can be built ground or ceiling supported
Qwick Connect GOH systems that work with standard pallet racking
Drop-In GOH systems that work with any pallet racking. Ideal for storing clo30thing on hangers in pick modules.
Railex System 200 Slick Rail Trolley Systems for Garments on Hangers
- Run on gravity or powered systems or a combination of both.
- Built to your specifications for your application
- Suitable design for high speed product movement and storage
- Ideal for ground level or “up in the rafters” to maximize your cubic building space.

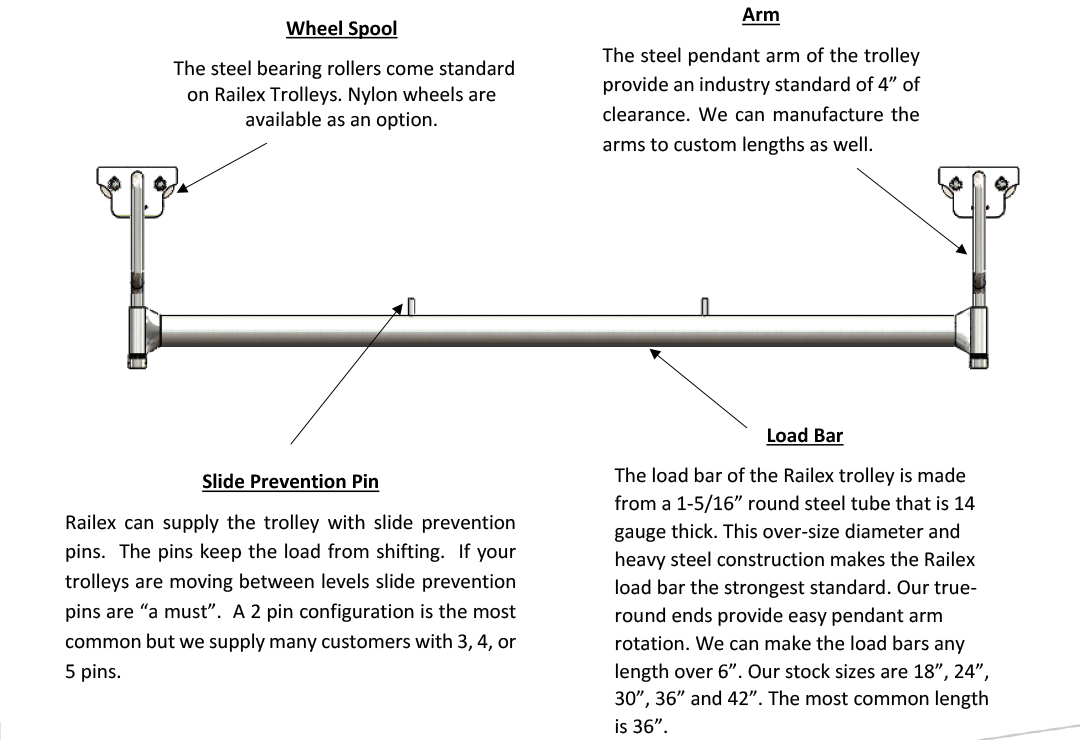

The Railex 510 Trolley
Over the years, Railex has manufactured hundreds of thousands of 510 trolleys. The Railex 510 Trolley is rugged and reliable. The smooth gliding action, combined with its ability to take daily use and abuse make it the industry standard. Railex can manufacture and supply the trolley with the features you need for your business.
Made With Pride in the USA
15 Ralph Ave
Copiague, NY 11726
