Gallery
Check out Railex Systems in action.
The Railex Gallery is a short visual list of some of the projects we have been involved with.
Railex is always looking to add to our gallery, so if you are a Railex customer please send us a photo of a recent job and we will add it to the visual library.
By clicking on one of the “system” buttons below, you will see only the projects you are interested in.

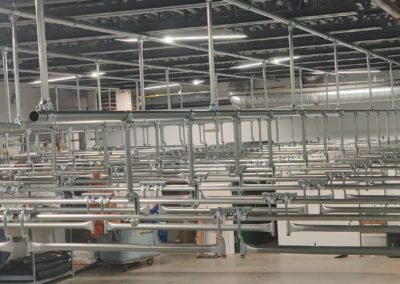

Railex System 200 Trolley Storage area under construction. This trolley storage area is ceiling suspended and comes out from underneath a mezzanine. This area features 20 trolley storage lines. The lines, when complete, will feed directly into the loading dock. Trolleys move into the trucks with Railex telescopic switches that join the rail system in the building to the rail system inside the trucks and vans.

Railex System 200 Quick Connect Arm Brackets are ideal for quick installation of GOH hanging systems in pallet racks and pick modules. Railex makes these brackets in every conceivable size – Single Arm Brackets (shown), Double Arm Brackets, Facing left-right-back-forward. The quick connect arm brackets fit into almost any tear-drop style pallet rack upright with a simple and secure click into place.

Railex System 700 Garment Storage Conveyor. These Railex System 743 two tier storage conveyors are equipped with double yokes for the heavy load of inmate property storage. The two tier arrangement allows for the maximum use of the ceiling height in this room. With a double yoke the conveyor can easily handle 60 pounds per foot of garments.

Railex System 420 Pin Conveyor with pneumatic and fixed take off sorts the garments according to inputs from an inspection station further up-stream. One of the challenges of this installation was a tight corner and moving garments into another room for further processing. The entire system is suspended from a concrete ceiling with System 200 hardware.

Railex System 420 Pin Conveyor Pneumatic Transfer for taking garments off the line and onto slick rail. The Pneumatic transfer is activated by a system that automatically inspects the garment and then signals the system where to dispatch the garment.

Railex System 520 Lifting conveyors set up at inspection stations. The 520 conveyors are at 60 degrees. Once the highly specialized garments are inspected the 520 conveyors lift and then transfer the garments onto a Railex System 420 pin conveyor.

Railex System 520 Lifters Feeding System 420 Pin Conveyor. The lifters are bringing GOH up at 60 degrees and automatically feeding a Railex System 420 pin conveyor. Each lifter is set up with a senor system so that the garments are fed onto the line without colliding with any garments already on the 420 pin conveyor.

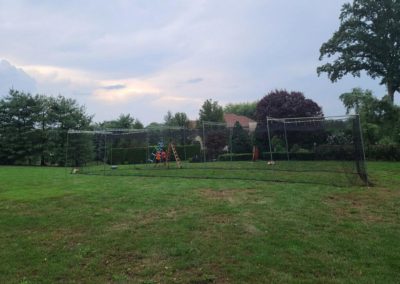

Railex System 200 Slick Rail is adapted for Baseball pitching and hitting cages. The Railex widespan joist frame gives the necessary support for this design.

Railex System 200 Slick Rail is adapted for Baseball pitching and hitting cages. The Railex widespan joist frame gives the necessary support for this design.

Railex System 200 headers are braced and anchored to the wall using Railex L6D plates and Railex concrete anchors.

Railex System 200 uprights are anchored into any flooring surface. In this photo Railex supplied the L6D mounting plate and the anchors. We ship everything to the job site.

Railex System 200 Slick Rail is easily installed against a wall. Your perimeter space and single walls are turned into useful storage.

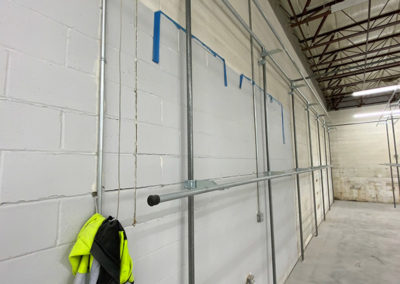

Railex System 200 Slick Rail newly installed in a garment restoration storage facility. This slick rail is system 12’ tall and is double tier. When filled it will maximize the cubic space of this 1,600 square foot space with room for about 10,000 garments.

Railex System 200 Trolley Rail installed in a 52’ long tractor trailer. This system was installed more than a decade ago and we have supplied material for additional trolley systems recently.

Railex System 200 Trolley Rail installed in a 52’ long tractor trailer. This system was installed more than a decade ago and we have supplied material for additional trolley systems recently.

Railex System 200 installed for costume storage in a tight space. We included a shelving system on top for folded items. This system is completely free standing with our end-frame and header design.

Railex System 700 Conveyor controller. Our System 2100 controller for digital garment retrieval and integration into the POS system.

Railex 742 conveyor and slick rail installed in a dry cleaner. We maximized the space with our two tier conveyor and ceiling suspended slick rail system.

Railex worked with a client to modify off-the-shelf parts to design three ceiling-suspended computer work stations

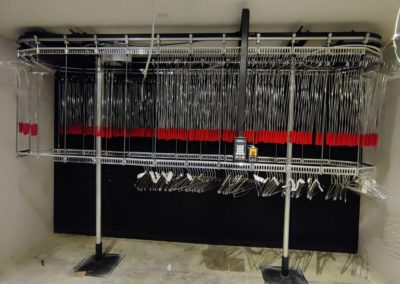

Railex System 742 Two-Tier Garment Storage Conveyor in High Value Commercial Storage Facility – Side View

Railex System 742 Two-Tier Garment Storage Conveyor in High Value Commercial Storage Facility – Front View

Railex System 200 Trolley Storage System just completed. Features Railex trolley stops, switches, rails, suspensions, and joist frames.

Railex System 200 Powered Trolley Rail with Mode Changer, Brake, Pneumatic Switches, Trolley Extractor, Multiple Full Line sensors, and Touch Screen Control System

Railex System 211 Trolley Booster bringing down delivery route by the van load from overhead storage rails
