RAILEX SYSTEM 420 PENDANT UP POWER TUBE CONVEYOR

RAILEX SYSTEM 420 PENDANT UP POWER TUBE CONVEYOR

The Railex System 420 power tube conveyor moves garments along a steel track by pushing the hangers that lay on the track. Since Railex introduced the System 420 we have installed hundreds of systems and tens-of-thousands of feet of conveyor rail and chain.

The 420 is designed for conveyor garments and similar items on wire hangers horizontally and on inclines in all directions. The 420 can follow almost any desired path through your facility.

Chain Type

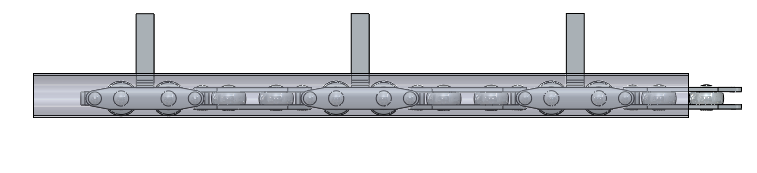

421-C6P

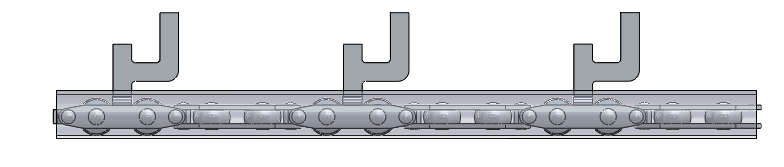

421-C6UC

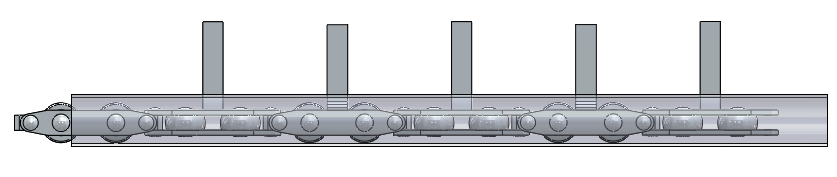

421-C3P

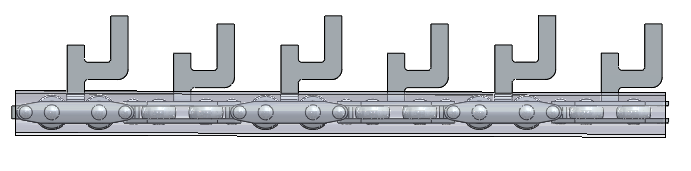

421-C3UC

G2 Rail Support

CB2 Rail Support

Curves

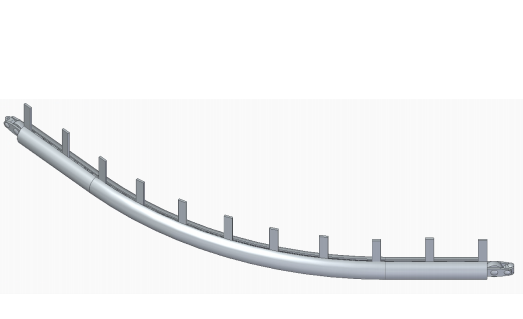

Horizontal Curve

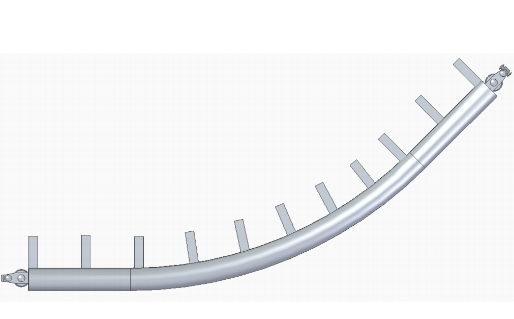

Vertical Curve Lower Bend

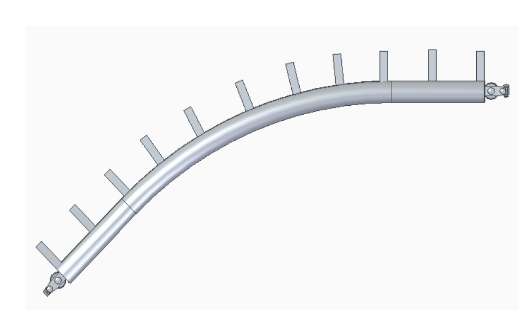

Vertical Curve Upper Bend

Key Features:

  • An enclosed track conveyor (ET) that is manufactured from 12 gauge zinc plated steel or stainless steel.
  • All turns are hardened and machined stainless steel.
  • Typical line speed of 18 to 45 feet per minute.
  • Motor and gearing sized for each installation size and load requirements.
  • The chain is made from hardened and corrosion resistant links and pushers.
  • Each drive features a torque limiter for over-load protection.
  • The chain is designed to operate in temperatures as high as 300 degrees F and 100% humidity.
  • All 180 degree drives feature a screw-type take up for proper slack adjustment.
  • Add-on Features such as welding clamps, hangers, non-melt chain lubricant, and pneumatic loading and un-loading are available.
  • Complete controls, inverters, safety warnings, and operational sensor systems are available for your particular installation.
System 420 being used in retail display.

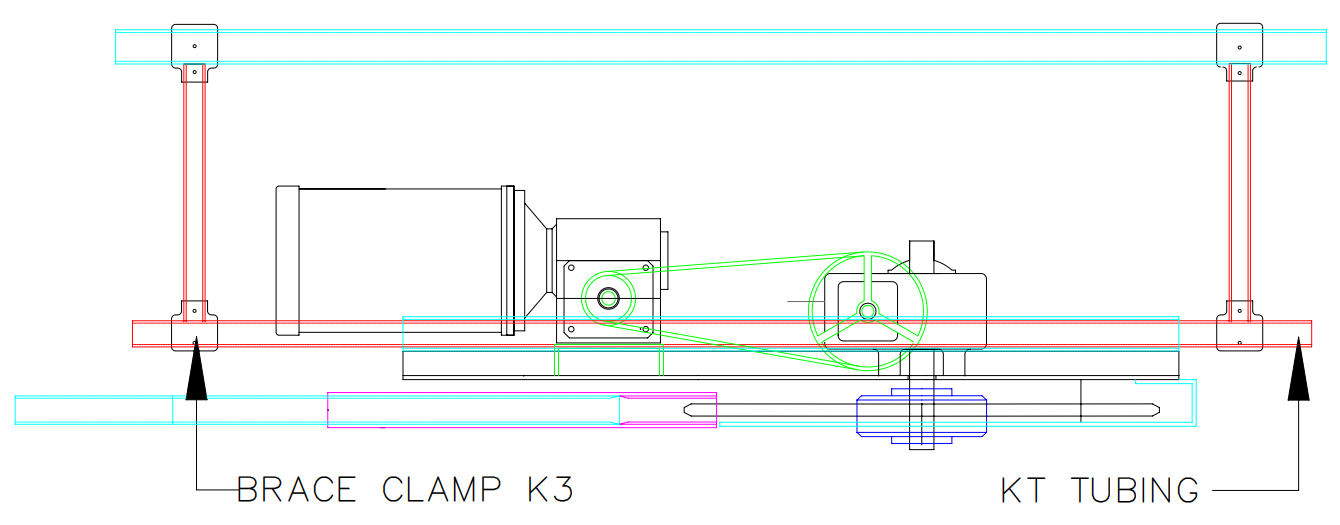

System 420 typical drive suspension.

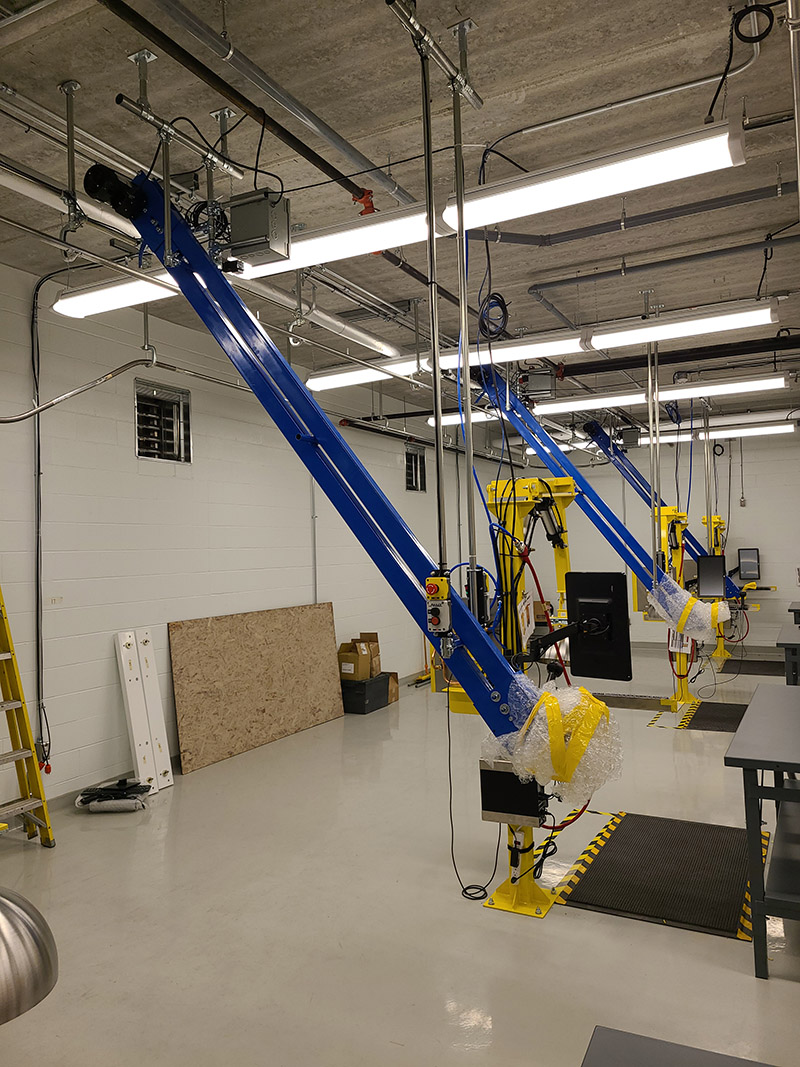

A Railex 420 Pin Conveyor installed with a family of Railex 520 Incline conveyors. The System 420 pin conveyor runs through the facility for a series of sophisticated inspection stations. The 420 is running in an optical sensor-controlled stop-start setup.

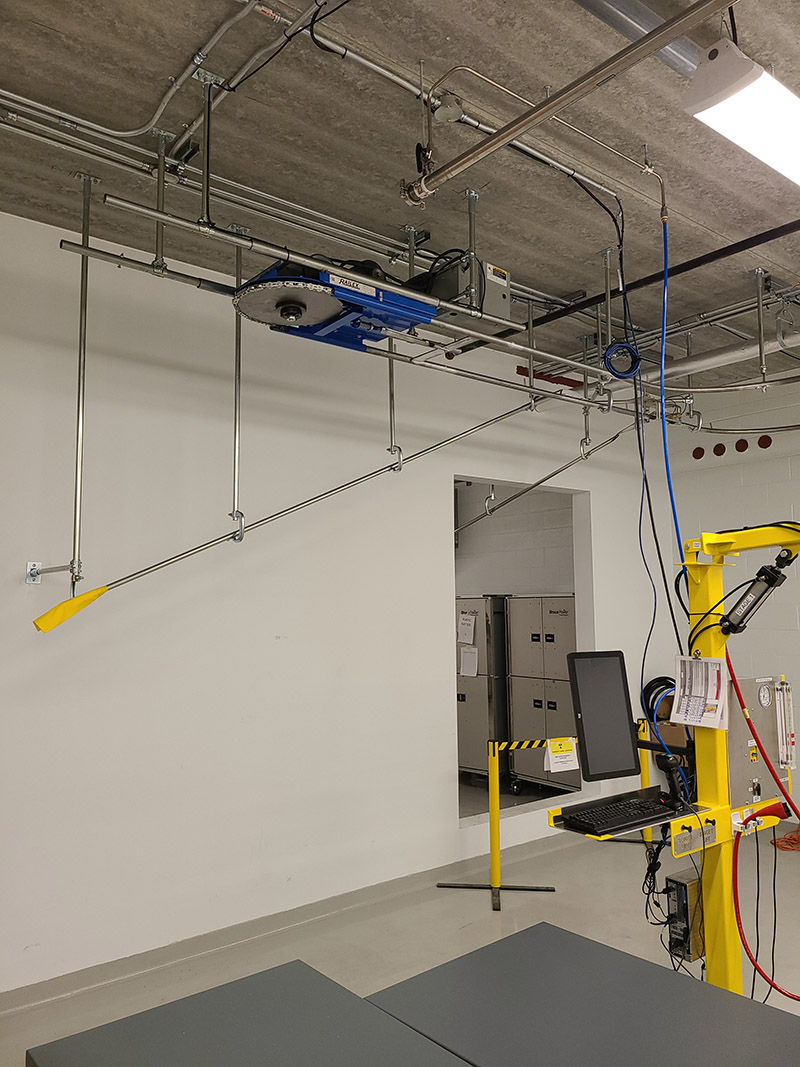

A Railex System 420 Pin Conveyor discharge and drive is shown in this picture. There are two discharge points in this set up. One is pneumatic and the other is fixed. The entire system is suspended from a concrete ceiling using Railex System 200 slick rail hardware.
