System 500 Vertical Lift Conveyors for Garments and Trolleys
Complete solutions for conveying garments on hangers (GOH).
A Complete Range of Vertical Lift Conveyors
System 510 Vertical Garment Conveyors
System 510 Vertical Garment Conveyors are designed to conveyor single garments or similar items vertically between two levels. The conveyed items automatically transfer at both levels onto accumulation lines for safe, fast, easy, semi-automatic operation.
System 520 Inclined Garment Conveyors
System 520 Inclined Garment Conveyors are designed for conveying garments on wire hangers vertically at inclines of 60 degrees.

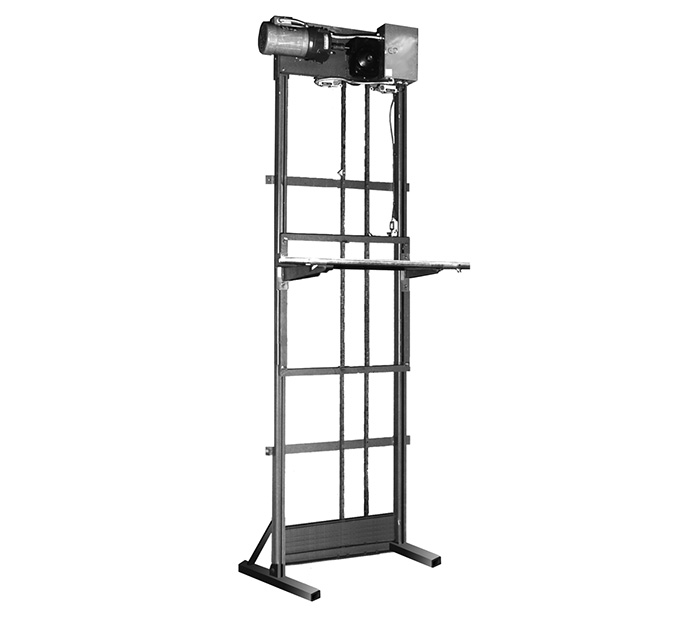

System 570 Vertical Lifts
System 570 Vertical Lifts are designed to move garments on hangers (GOH) between different levels. It can be configured to be hand-loaded with batches of clothing, or it can be integrated into a trolley line to move trolleys vertically between floors.
Railex System 510 Vertical Conveyor Retail Bag Delivery
The Railex System 570 Vertical Lift is designed to move GOH or Trolleys between levels. The system is very versatile. In this installation a high end retail location uses the lift to move GOH from basement storage up to the retail store. For this tight installation we made a telescoping loading bar. In other installations this lift can be automated with sensors and switches to bring loaded trolleys between levels in warehouse and laundry operations.
Download Brochures
Download System Drawings
Railex System 510 Vertical Conveyor Single Garments Cut Sheet
Railex System 510 Vertical Lift For GOH Assembly Instructions 94191-10
Railex System 510 Vertical Lift For GOH Typical vs 570
Railex System 520 Conveyor Typical Cut Sheet
Railex System 520 vs 771 Conveyor For Dry Cleaners (Elevation View) 02190
Railex System 520 vs 771 Conveyor For Dry Cleaners (Plan View) 02190-1
Railex System 570 Vertical Lift Trolley Configuration Cut Sheet
Railex System 570 Vertical Trolley Lift 05132
Railex System 570 Vertical Trolley Lift Typical Installation Instructions 570T-15TYP
Railex System 570 Overall Machine Dimensions
Overall vertical dimension not stated due to a variety of vertical adjustments and configurations available. Load Platform dimensions and horizontal width of machine are fixed, however, the attached garment loading arm and/or trolley can come in custom lengths to fit your needs.
