Railex System 211 Powered Trolley Booster & Rail
- Powered rails move trolleys up and down between different levels or floors in your facility.
- Powered rails move trolleys over long distances at grade level.

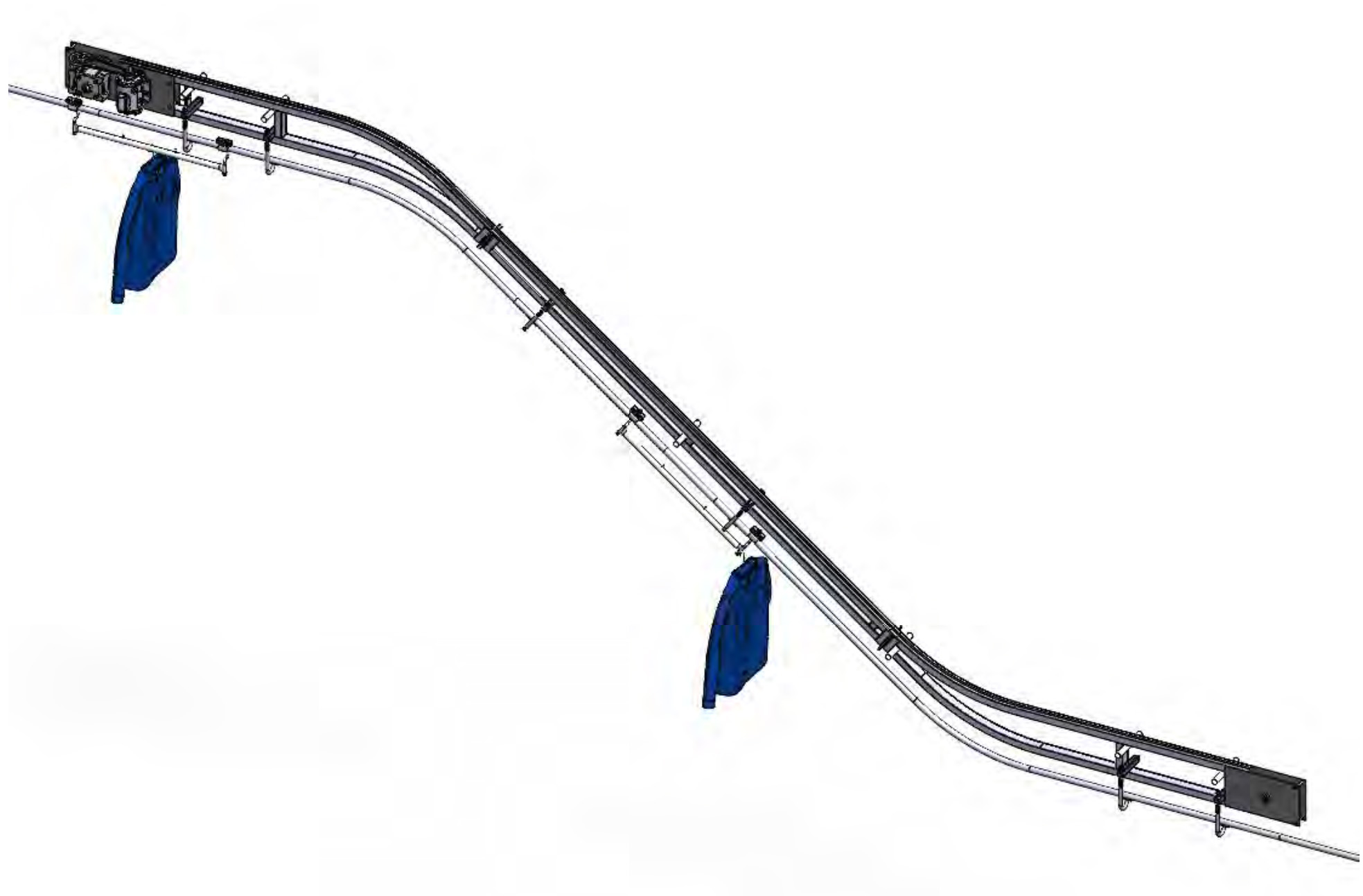

System 211 Powered Trolley Booster
The System 211 is specifically designed for garment manufacturers, garment distribution centers, and uniform rental; to move trolleys between floors and between mezzanine and main floors. Suitable for continuous operation. High capacity, 37 ft./minute up, down, or both. Elevation changes to 20’ – Incline 30°. Quiet, lubrication-free operation.
Download Brochures
Download System Drawings

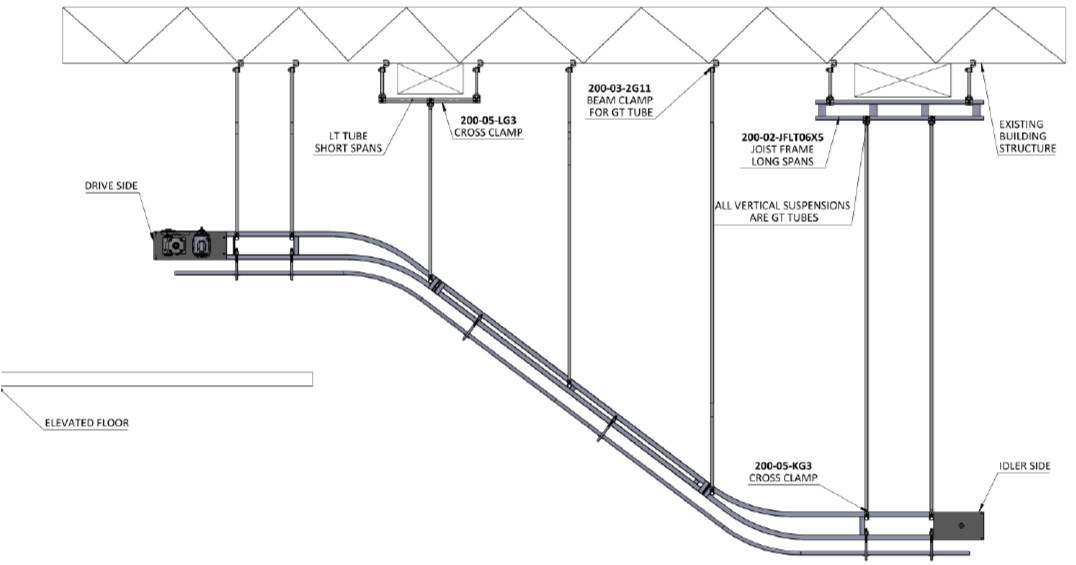

Railex System 211 Trolley Booster Incline Rail Typical Cut Sheet
Railex System 211 Trolley Booster Feed Into a Power Rail Layout
Railex System 200 and 211 Typical Garment Clothing Storage Conveyor Cut Sheet
Railex System 200 Overhead Garment on Trolley Rail Ceiling Support 96004
Railex System 200 Overhead Garment on Trolley Storage System Typical 96003
Railex System 200 Typical Clothing Distribution Center Layout 2 (Multi-level) 96009
Railex System 200 Typical Clothing Distribution Center Layout 3 (Multi-level) 96010
Railex System 211 Typical Trolley Booster Power Rail for GOH Elevation Change 96011
Railex System 215 and 211 Trolley Pusher Dogs for Powered Rail Tech Sheet
Specifications:
Power Track: Enclosed
Chain: Ball bearing, Nylon Tired
Drive: 37fpm
Take-up: Adjustable
Pushers: Dual Pivoting
Bi-directional Capability
Incline: 30° standard
Duty: Continuous or Intermittent

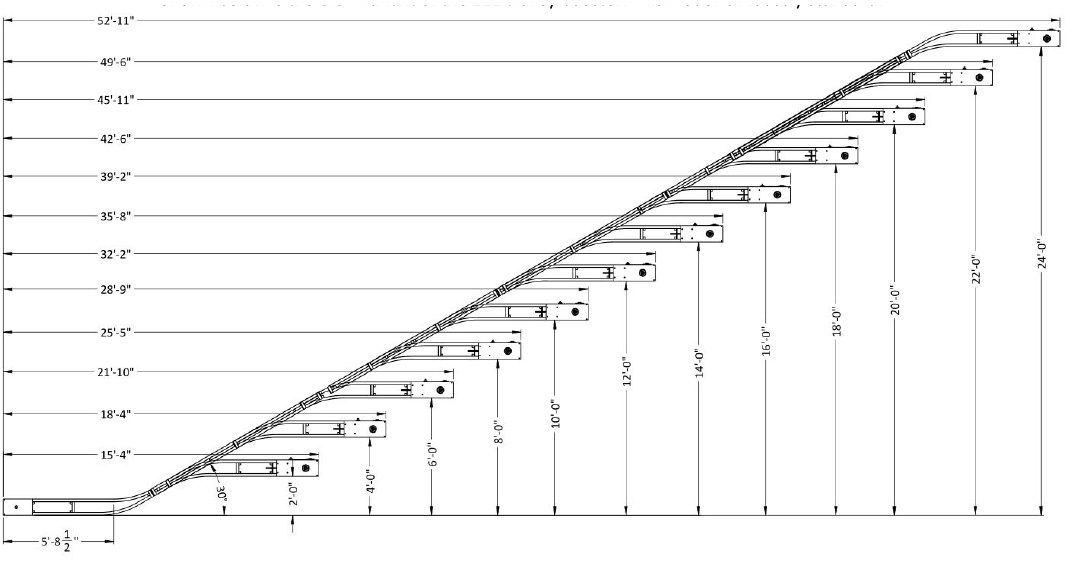

| Elevation Change (E.C.) | Overall Length Horizontal | H.P. |
|---|---|---|
| 2’- 0” | 14’- 9” | 1/3 |
| 3’- 0” | 16’- 6” | 1/3 |
| 4’- 0” | 18’- 3” | 1/3 |
| 5’- 0” | 20’- 0” | 1/3 |
| 6’- 0” | 21’- 9” | 1/3 |
| 7’- 0” | 23’- 5” | 1/2 |
| 8’- 0” | 25’- 4” | 1/2 |
| 9’- 0” | 26’-11” | 1/2 |
| 10’- 0” | 28’- 8” | 1/2 |
| 11’- 0” | 30’- 5” | 3/4 |
| 12’- 0” | 32’- 1” | 3/4 |
| 13’- 0” | 33’-10” | 3/4 |
| 14’- 0” | 35’- 7” | 3/4 |
| 15’- 0” | 37’- 4” | 3/4 |
| 16’- 0” | 39’- 1” | 3/4 |
| 17’- 0” | 41’- 9” | 3/4 |
| 18’- 0” | 43’- 6” | 3/4 |
| 19’- 0” | 45’- 2” | 3/4 |
| 20’- 0” | 46’-10” | 3/4 |
RAILEX SYSTEM 215 POWERED TROLLEY SWITCHES
Switches can automatically move trolleys to the storage or staging area you specify. This is achieved by bar-code readers, optical sensors, or RFID triggers. The switches are pneumatically operated for low maintenance and high levels of dependency.

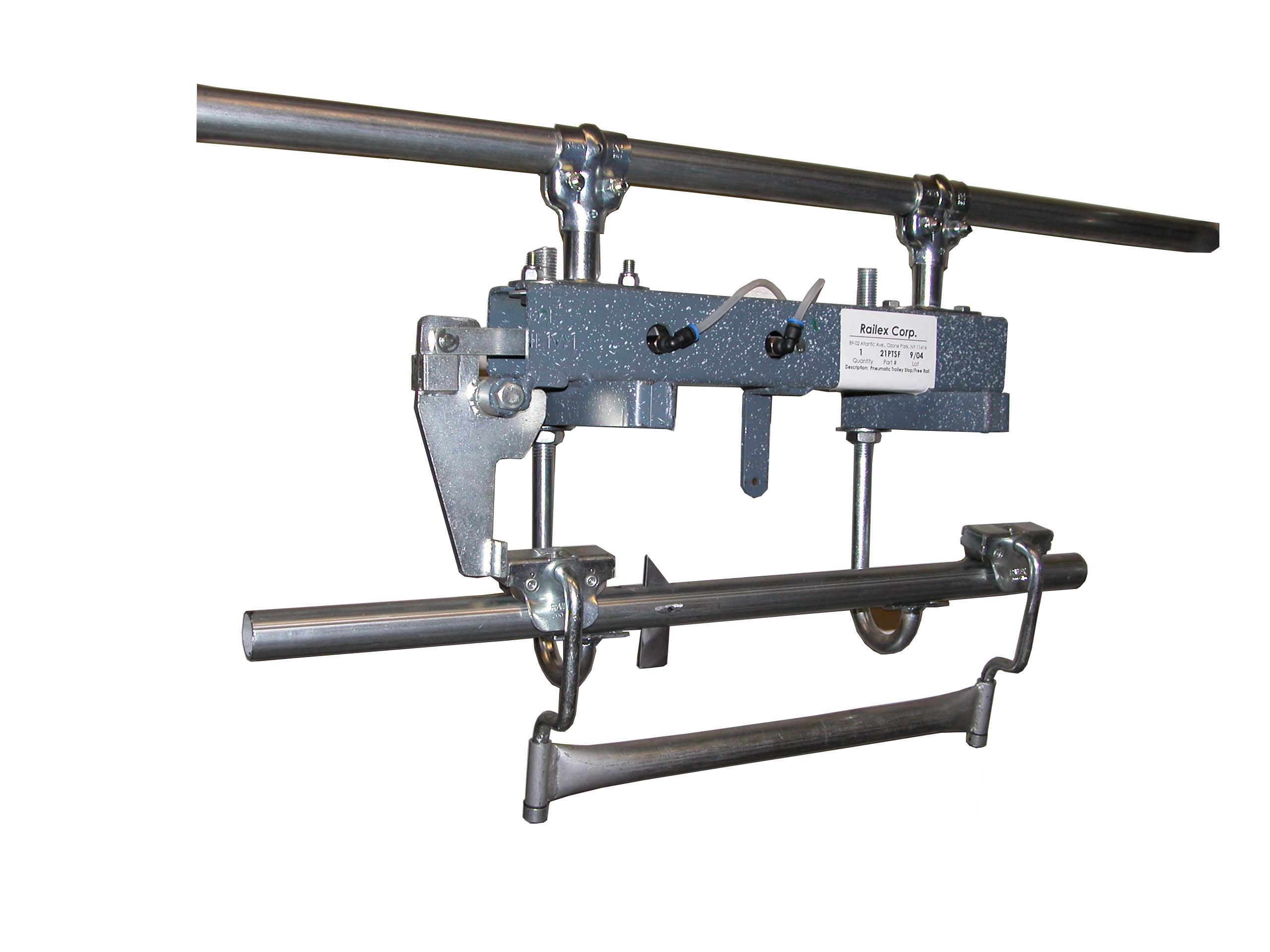

Railex System 215 Trolley Motion Pneumatic Trolley Stop
Railex System 215 Pneumatic Trolley Feeder for Automated Trolley Motion Control
Standard Equipment
- 1/3 – 3/4 hp, 115/208/220, 1 or 3 Ø phase.
- Adjustable torque limiter.
- Bi-directional pivoting pushers every 8’.
- Adjustable take up.
- Guard Rail for incline.
- Trolley rail to match 1 1/16” or 1 5/16”.
Specify:
- Electrical supply, change in elevation, and rail size.
Optional:
- Electrical control package including push button stations.
- Full line sensor.
- Pneumatic trolley feeder.
Railex System 200-210-21PITS Pneumatic Inline Trolley Stop
The Railex System 200-210 family of parts help control trolleys moving by gravity and under power throughout your operation.
The Railex Inline Pneumatic Stop holds trolleys in place where you want control and singulation of your trolleys.
Trolley-Motion is an important part of your GOH or industrial application and our inline stops will help you optimize your throughput.
Railex makes fully automated trolley systems. These 4 mode changers are being wired up to run trolleys loaded with GOH.
A Complete Array of Power and Free Trolley Rail Applications
Railex produces both power and free trolley rail systems. Our systems include all the pneumatic and electrical controls necessary to make your system run smoothly. In addition to running your system, we provide multiple points of data capture so you know when your system stops and why. You know how many hours per day your system is operational. You can track how many trolleys pass through your system and where they discharge. Our mode changers give you flow control so your line does not dictate the speed of your workforce partners. The bottom line result is more throughput in your operation. Please contact Railex for your next power and free trolley rail application.
Railex System 211 Power and Free Trolley Rail with Mode Changer from Soft to Hard Dog
