Railex System 420 Pin Conveyor Pneumatic Transfer for taking garments off the line and onto slick rail. The Pneumatic transfer is activated by a system that automatically inspects the garment and then signals the system where to dispatch the garment.

System 400 ET Pin Conveyors

Skills

Posted on

November 17, 2020

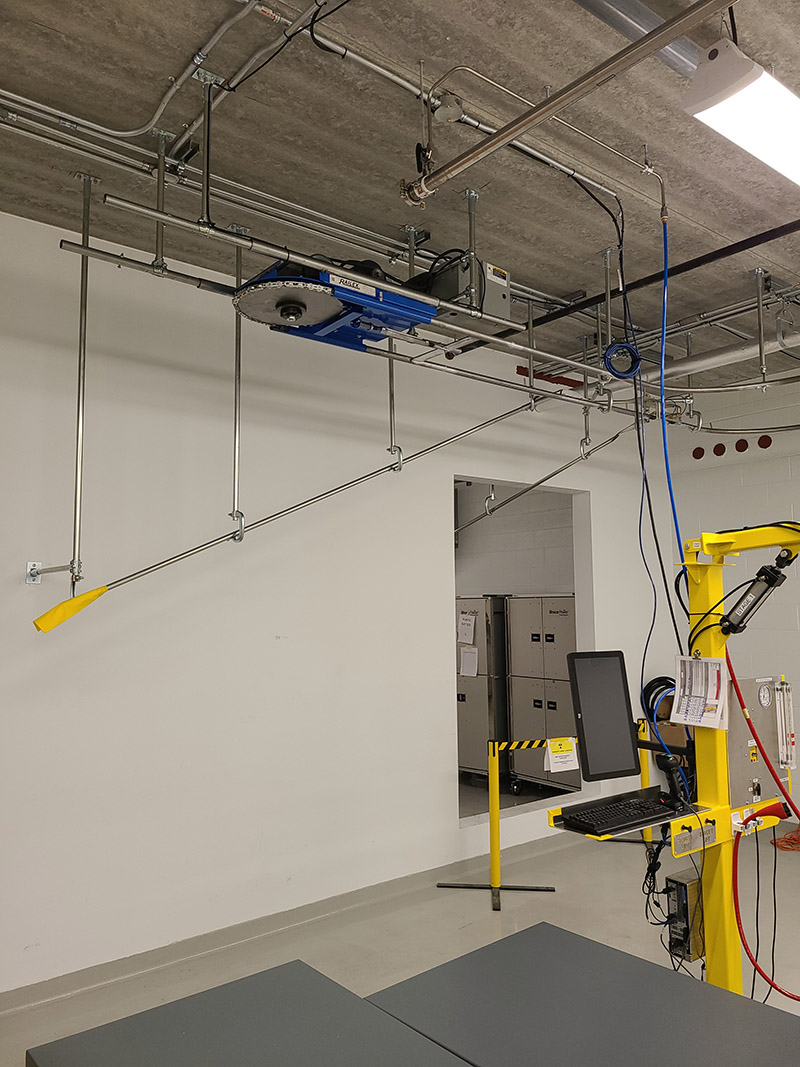

← Railex System 520 Lifting conveyors set up at inspection stations. The 520 conveyors are at 60 degrees. Once the highly specialized garments are inspected the 520 conveyors lift and then transfer the garments onto a Railex System 420 pin conveyor. Railex System 420 Pin Conveyor with pneumatic and fixed take off sorts the garments according to inputs from an inspection station further up-stream. One of the challenges of this installation was a tight corner and moving garments into another room for further processing. The entire system is suspended from a concrete ceiling with System 200 hardware. →
